How TWS Earbuds Waterproof Membranes Protect Against Sweat and Rain

Introduction

TWS (True Wireless Stereo) earbuds have become an essential part of daily life. Whether used during workouts, commutes, or outdoor activities, these compact devices face constant exposure to sweat, rain, and humidity. Without proper waterproofing, moisture can damage internal components, degrade sound quality, and significantly shorten the lifespan of the earbuds.

In this article, we explore how ePTFE waterproof breathable membranes and waterproof acoustic membranes provide reliable protection for TWS earbuds while maintaining high-quality audio performance.

Why TWS Earbuds Need Waterproof Membranes

TWS earbuds are particularly vulnerable to moisture due to their compact size and frequent close contact with the body. The main challenges include:

• Sweat ingress during exercise can corrode internal circuits and battery contacts
• Rain and humidity can penetrate speaker grills and charging ports
• Pressure differentials caused by temperature changes can force moisture inside
• Sound degradation when water accumulates near the speaker driver

A properly selected waterproof membrane addresses all these issues while allowing air pressure to equalize, preventing seal failure and bulging. For more on how waterproof membranes work, check out our detailed guide on membrane technology principles.

ePTFE Membranes: The Gold Standard for TWS Waterproofing

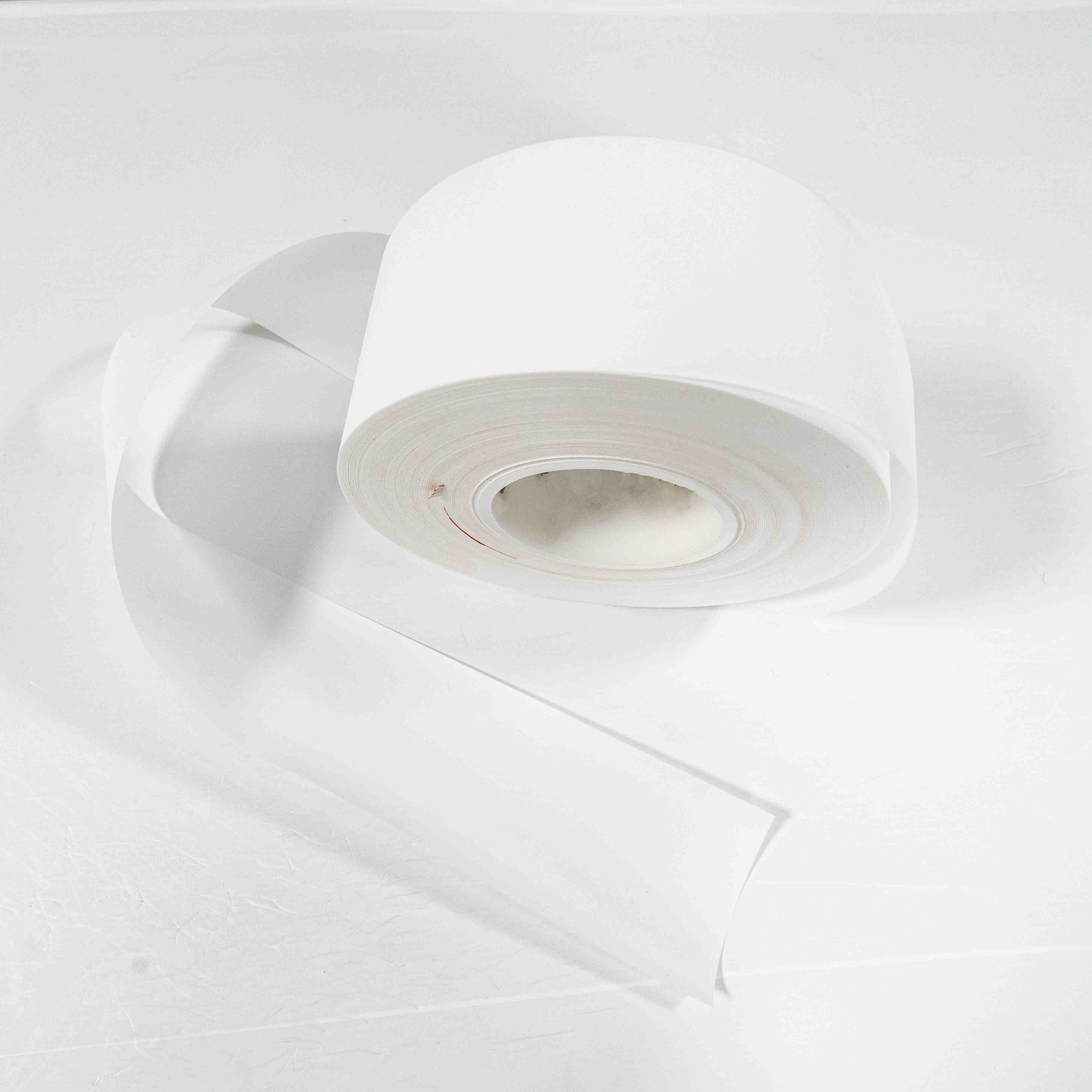

Expanded polytetrafluoroethylene (ePTFE) membranes are widely regarded as the best solution for TWS earbuds waterproofing. The microstructure of ePTFE contains billions of microscopic pores per square centimeter — small enough to block water droplets but large enough to allow water vapor and air to pass through.

Key benefits of ePTFE membranes for TWS earbuds:

• IP67 to IP68 protection — withstands immersion in water up to 1 meter depth. Learn more about IP67 vs IP68 ratings
• High airflow — equalizes pressure rapidly, preventing seal damage
• Chemical resistance — unaffected by sweat, oils, and cleaning agents
• Thin profile — typically 0.1mm to 0.3mm, ideal for compact earbud designs
• Acoustic transparency — minimal impact on sound quality when properly integrated

At Mimoyin, we manufacture custom die-cut ePTFE membranes specifically for TWS applications, with tight tolerances and consistent quality across every batch.

Waterproof Acoustic Membranes: Balancing Protection and Sound Quality

For the speaker port area, a specialized waterproof acoustic membrane is essential. Unlike standard waterproof membranes, acoustic variants are engineered to transmit sound waves with minimal distortion while still providing a waterproof barrier.

The critical parameters for acoustic membranes in TWS applications include:

• Sound transmission loss — should be less than 2dB across the audible frequency range (20Hz–20kHz)
• Water entry pressure — minimum 50kPa for IP67-rated earbuds
• Thickness — typically 0.05mm to 0.15mm for optimal acoustic performance
• Adhesive compatibility — must bond securely to the earbud housing without gaps

Our pressure equalization vent membranes also play a crucial role in TWS design, ensuring that internal air pressure remains balanced during temperature and altitude changes.

ePTFE vs TPU: Which Membrane is Better for TWS?

Both ePTFE and TPU membranes are used in TWS earbuds, but they serve different purposes:

For a detailed comparison, visit our ePTFE vs TPU complete comparison guide.

Installation Best Practices for TWS Manufacturers

Proper installation is just as important as membrane selection. Best practices include:

1. Clean bonding surfaces — remove all oils, dust, and residues before applying the membrane
2. Controlled pressure application — apply even pressure across the entire membrane surface to ensure complete adhesion
3. Die-cutting precision — custom die-cut membranes should match the port opening exactly, with no overlap or gaps. We offer OEM/ODM die-cutting services
4. Quality testing — perform water immersion tests and acoustic measurements on every production batch

Conclusion

Selecting the right waterproof membrane for TWS earbuds requires balancing protection level, acoustic performance, and manufacturing feasibility. ePTFE membranes offer the best combination of waterproofing and breathability, while specialized acoustic membranes ensure that sound quality remains uncompromised.

At Mimoyin Technology, we provide custom die-cut ePTFE and waterproof acoustic membranes tailored to your TWS earbud specifications. With over 10 years of membrane manufacturing experience, we help B2B buyers worldwide achieve IP67/IP68 protection without compromising audio quality.

Get Your Custom Membrane Solution

Request free samples and technical consultation from our engineering team. We'll review your drawing, recommend the right membrane material, and produce die-cut samples within 3-5 working days.
