TWS Audio Waterproof Acoustic Vent Membrane
TWS Acoustic Vent Membrane for Earbuds

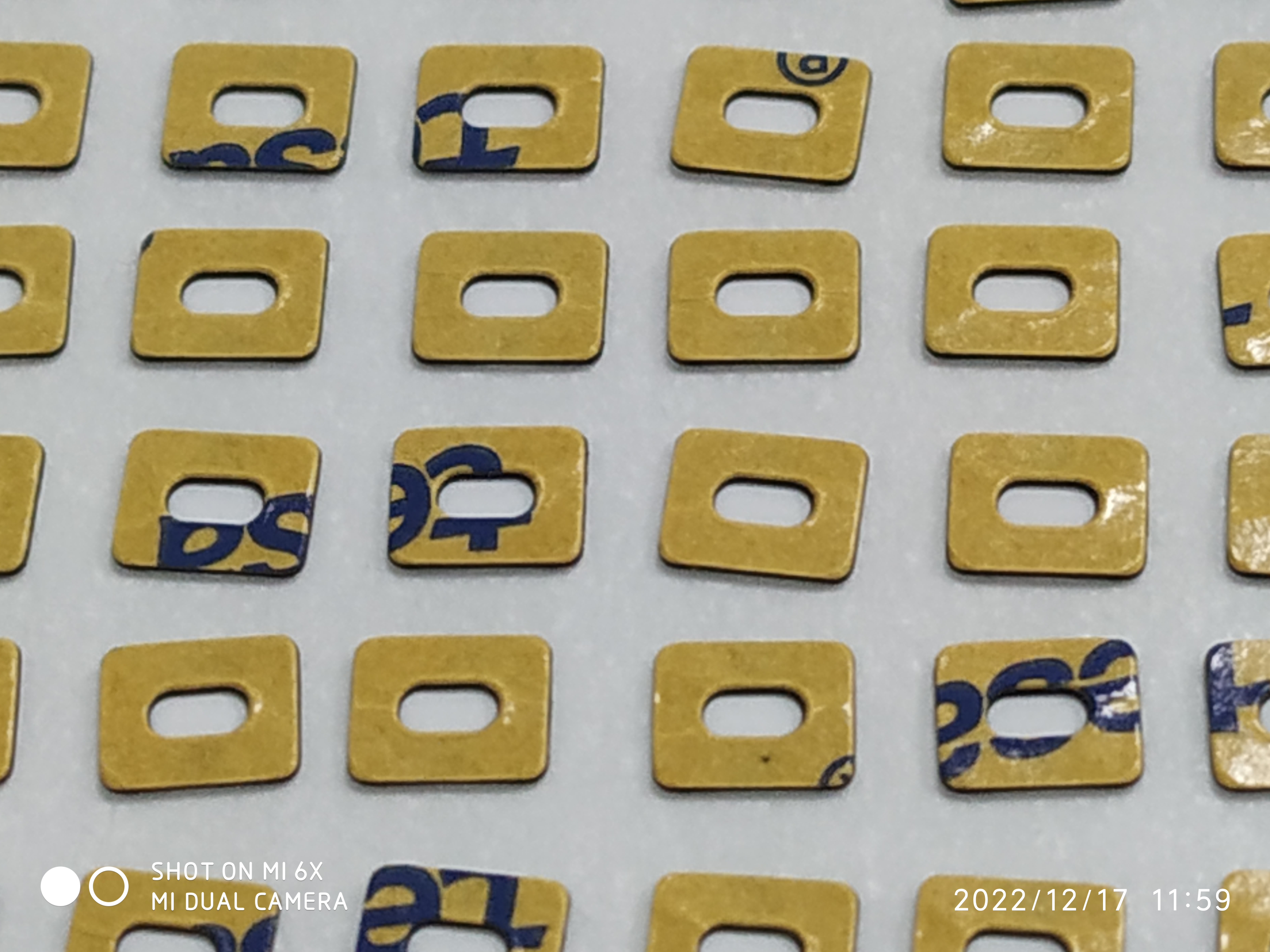

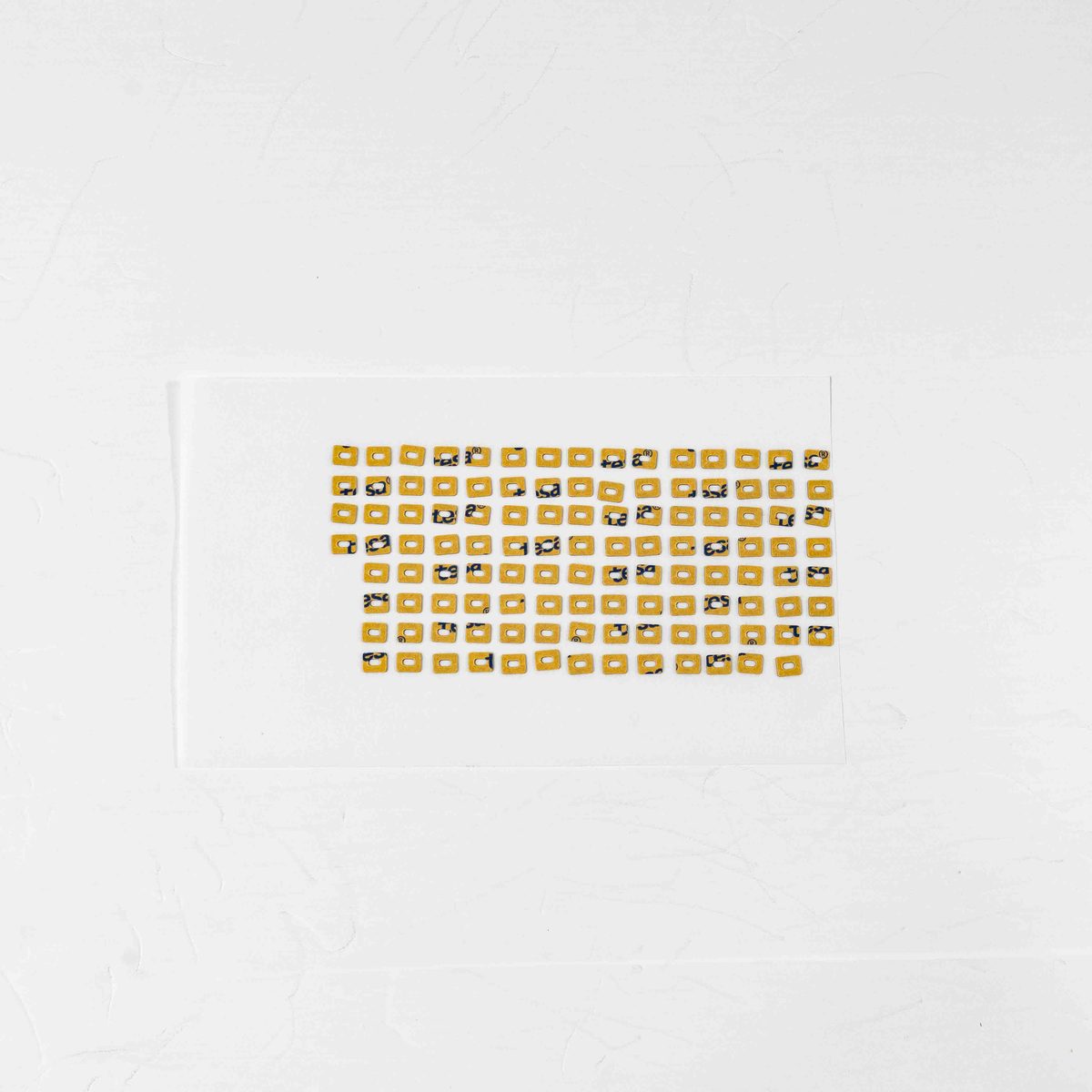

Our TWS acoustic vent membrane is specially designed for true wireless stereo earbuds, Bluetooth headsets and miniature audio devices. It provides waterproof protection while maintaining clear and natural sound transmission.
Why TWS Devices Need Acoustic Vent Membranes
Modern TWS earbuds are fully sealed electronic devices. Without proper ventilation, pressure imbalance, moisture and condensation can damage microphones and speakers, leading to poor sound quality and device failure. Our ePTFE acoustic membrane solves these problems effectively.
Core Advantages
- Ultra-low acoustic loss (≤1dB) for clear and natural sound transmission
- IP67/IP68 waterproof and sweatproof protection for daily use
- Microporous ePTFE structure ensures stable acoustic performance
- Prevents dust and moisture entering microphone and speaker units
- Custom micro die-cut shapes for compact earbud structures
Main Applications
- True wireless stereo (TWS) earbuds
- Bluetooth wireless earphones
- Sports waterproof earphones
- In-ear microphones and voice modules
- Mini portable audio devices
Material Options
- ePTFE acoustic vent membrane
- TPU laminated acoustic film
- PU breathable membrane (secondary protection layer)
Why Choose Us
- Stable acoustic performance for mass production
- OEM & ODM customization for earphone brands
- Precision die-cutting for micro components
- Fast sample support for engineering validation
- Proven supply for consumer electronics industry
Order Information
- MOQ: 1000 pcs
- Sample Lead Time: 3–5 working days
- Mass Production Lead Time: 7–15 working days
Related Materials:
Acoustic & Waterproof Capability
| Property | ePTFE (typical) | Alternative (TPU / non-fluorine) |
|---|---|---|
| Acoustic loss | ≤ 1 dB | 6–10 dB |
| Waterproof rating | IP67 / IP68 | IP67 / IP68 |
| Breathability | 200–12,000 ml/min @ Ø10 mm, 7 kPa | lower / material-dependent |
| Temperature range | −40 to +260 °C | −40 to +120 °C |
Mimoyin does not sell fixed catalog SKUs. We match the acoustic vent membrane to your drawing and required sound-loss / waterproof spec, then produce samples for validation.
Related guide: See the complete Acoustic Vent Membrane overview for material comparisons, selection criteria, and application design.
