Waterproof Vent Membrane for Outdoor Electronics | IP67 IP68
Why Outdoor Electronics Need a Breathable Vent
Rugged speakers, GPS units, action cameras, and phones live in rain, spray, sand, and thermal shock. Four failure modes dominate field returns:
- Speaker cone waterlogging—a sealed "waterproof" box traps water against the cone, killing bass.
- Housing fogging from condensation after a cold-to-warm swing.
- Dust and sand clogging of mic and port meshes.
- Thermal breath stress—sealed bodies flex and crack through day-night temperature cycles.

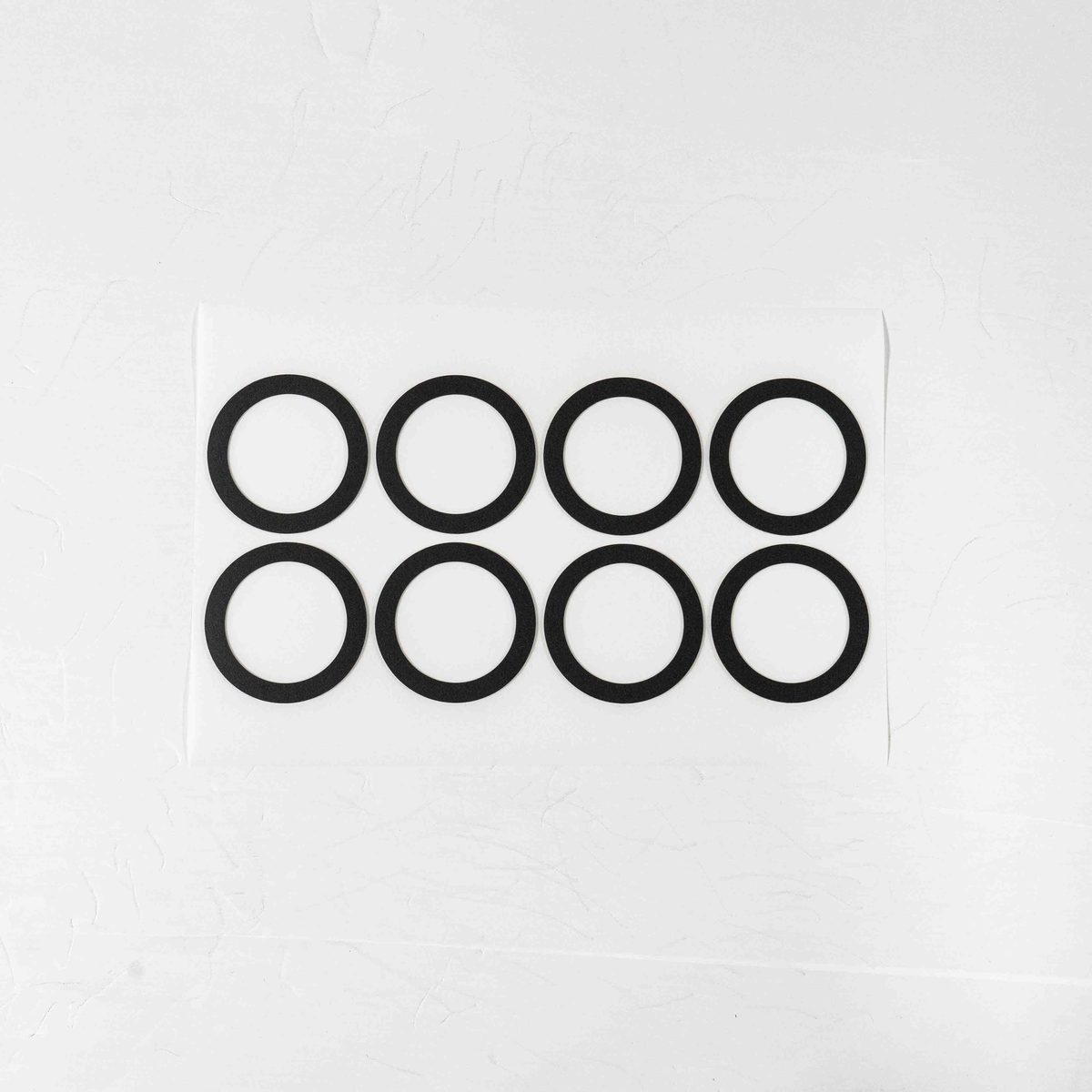

A correctly specified ePTFE vent is the water barrier, the sound window, and the pressure path in one part.
Key Features and Performance
- Acoustic Transparency: insertion loss ≤1 dB at 1 kHz (ePTFE); premium acoustic-grade PU film—such as the Japanese film we tested—reaches 0.5–1.5 dB, in the same league as ePTFE. Non-fluorine film sits at 6–10 dB. Material choice therefore hinges on waterproof depth and chemical/thermal stability, not acoustic loss alone. Where ePTFE pulls clearly ahead: it reaches 2–50 m waterproof depth and a −40 °C to +260 °C thermal range—premium PU tops out near 1–2 m and a far lower temperature ceiling.
- Waterproof Depth: ePTFE vents are rated from 2 m (IP68) up to 10 m, 30 m, and 50 m for submersion use; PU film typically caps at 1–2 m.
- Air Permeability: ≥700 ml/min @ Ø10 mm orifice for ePTFE, drying the chamber after spray.
- Temperature Range: ePTFE operates −40 °C to +260 °C; PU and TPU hit a much lower thermal ceiling and harden or creep sooner.
- Adhesive Backing: 3M 9448A / 9495LE PSA, rated −40 °C to +90 °C.
- Thickness & Tolerance: 0.05–0.20 mm film, die-cut to ±0.05 mm for small ports.
Material Comparison: ePTFE vs TPU vs PU
| Material | Acoustic Loss | Max Water Depth | Breathability (ml/min @ Ø10 mm orifice) | Temp Range | Best For |
|---|---|---|---|---|---|
| ePTFE | ≤1 dB | 2–50 m | High (≥700) | −40 to +260 °C | Rugged speakers, GPS, cameras |
| TPU | 2–4 dB | IP67 | Medium | Mid-range outdoor gear | |
| PU | 0.5–1.5 dB* | 1–2 m | Low | Lower than ePTFE | Low-cost cases |
* Premium acoustic-grade PU film (tested Japanese sample) measures 0.5–1.5 dB—comparable to ePTFE. Low-grade PU can be far higher; verify per supplier.
"Waterproof" without breathability is the classic outdoor-gear trap—sealed boxes fog and the speaker drowns. ePTFE breathes while it seals.
Where ePTFE pulls ahead: acoustic loss is now a tie with premium PU, but ePTFE reaches 2–50 m waterproof depth, survives −40 °C to +260 °C, resists chemicals and UV, and outlasts PU in long-life products—so it is the default for deep-submersion, under-hood, and multi-year-duty designs.
How to Select the Right Vent for Outdoor Gear
Four pitfalls cause most rugged-device field failures:
- Sealed but not breathable. A box that can't vent traps condensation; size airflow to ≥700 ml/min @ Ø10 mm orifice.
- Unstated acoustic loss. Ask for ≤1.5 dB at 1 kHz; low-grade films—thick PU or non-fluorine—are what muffle the speaker.
- Backing adhesive out of temp range. Desert gear hits 70 °C; generic PSA lifts. Specify 3M outdoor PSA.
- No dust/IP proof. Beach sand clogs cheap meshes; ePTFE's hydrophobic layer sheds it.

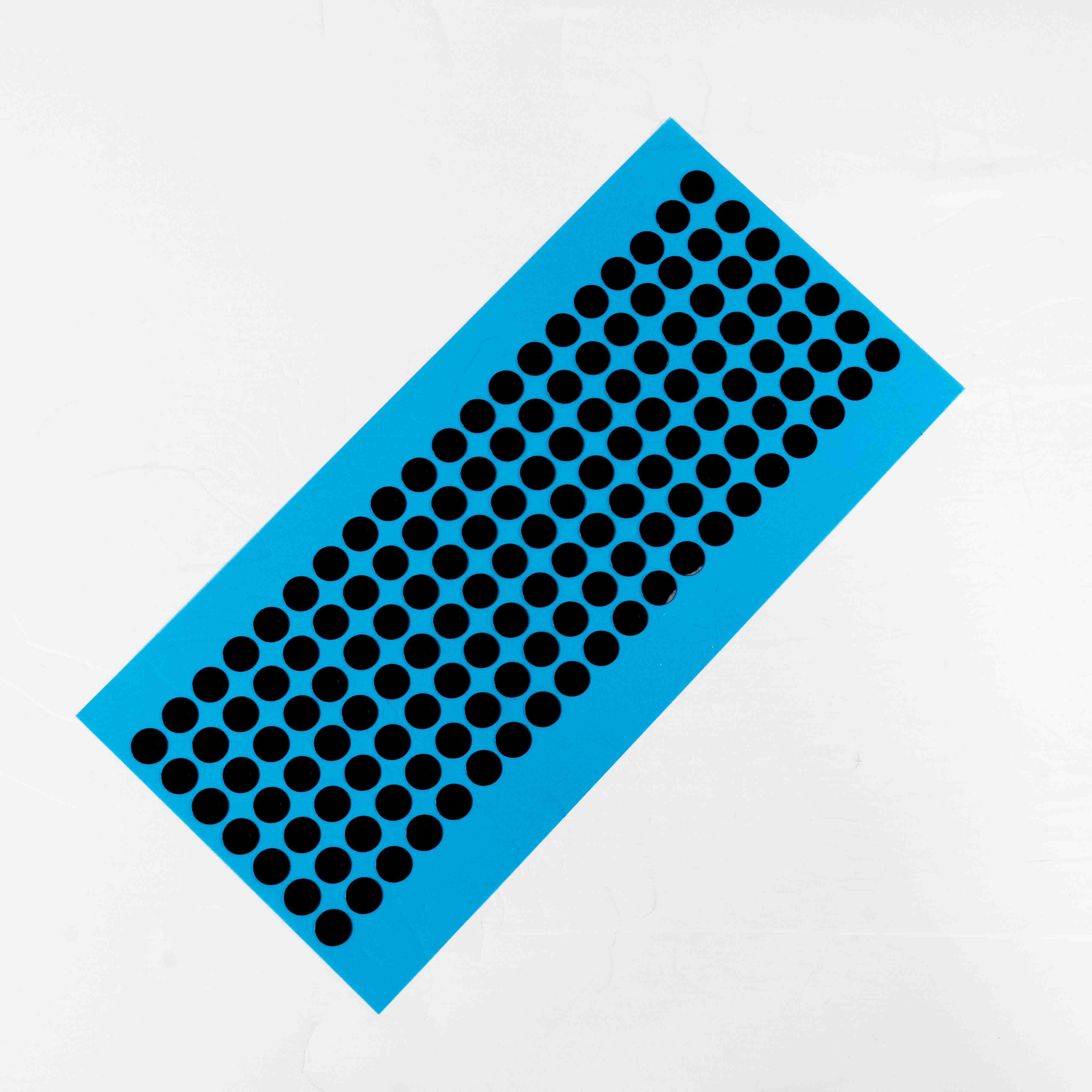

Selection standard we ship: ePTFE ≤1 dB loss · IP68 (2 m / 30 min) · ≥700 ml/min @ Ø10 mm orifice · 3M 9495LE · laser-cut ±0.05 mm · full test report per lot.
Factory Case: Rugged Bluetooth Speaker
A rugged-speaker brand returned 22% of a beach-model batch—cones waterlogged, bass gone. Their PU seal added 16 dB loss and didn't breathe. We moved to a 0.10 mm ePTFE membrane with 3M 9495LE:
- Insertion loss 16 dB → 0.9 dB; beach reviewers called it "loud and clear."
- Box went breathable; post-spray fogging fell to near zero.
- IP65 → IP68 (2 m / 30 min); pool-and-sand returns dropped below 0.5%.
- Volume: 4.6 million units over 15 months, zero acoustic returns.
FAQ
Will a waterproof membrane block sound on my speaker?
Not with ePTFE. A correctly specified ePTFE acoustic vent adds ≤1 dB insertion loss at 1 kHz—imperceptible—while blocking water and dust. Low-grade non-fluorine films are what add 6–10 dB and muffle sound; by contrast, acoustic-grade PU films measure only 0.5–1.5 dB — in the same league as ePTFE (≤1 dB). Specify an acoustic-grade membrane to stay ≤1.5 dB. For designs needing >2 m depth or high heat, ePTFE is the only film that holds up.
IP67 vs IP68 for outdoor gear?
IP67 (1 m / 30 min) covers rain and splash; IP68 (2 m / 30 min) adds submersion for kayak, pool, and beach use. Most rugged outdoor gear now targets IP68.
Can you die-cut custom shapes?
Yes. We laser-cut ePTFE vents to your port geometry at ±0.05 mm and supply free samples plus a full acoustic + waterproof test report per lot.
